ECO TECHNO

ECO-TECHNO는 일반 및 BIO폐기물의 재활용 및 폐용액 처리에 관한 최첨단 기술을 보유하고 있습니다.

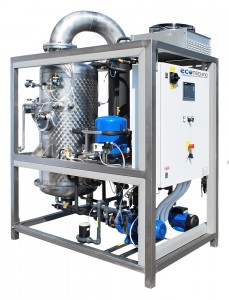

ECO DPE HP Series


시간당 10 - 150L의 폐용액을 처리할 수 있습니다.

전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작합니다.
Suitable for all industries with small flows of water and wastewater, where simple maintenance and low management costs are required.
Detachable boiling vessel with large evaporating area ideal for foamy liquids, submersed heat exchanger, side-condensation section, full automatic operation with PLC and touch screen. Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

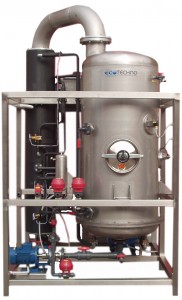

ECO DPC HP Series

시간당 10 - 150L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작합니다.

Detachable boiling vessel, submersed heat exchanger, side-condensation section, full automatic operation with PLC and touch screen.

ECO VS HP Series

시간당 10 - 750L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작합니다.

Low temperature vacuum evaporator with heat pump, powered with electrical energy.
Suitable for die-casting, electronic and mechanic industries, heat treatment, eluates from resin regeneration RO rejects, food & beverage (electropolished version available on demand), chemical & pharmaceutical, galvanizing, pickling and surface treatments, paint industry, printing industry, engraving, printing rotogravure, packaging, wineries (special line for the grape must concentration). Detachable boiling vessel, submersed heat exchanger, large manway and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen. Automatic cleaning.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

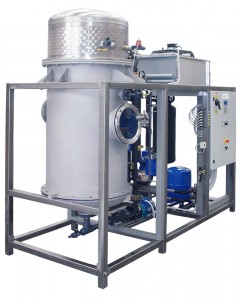

ECO CR HP Series

시간당 10 - 750L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작합니다.

Derived from the ECO VS-HP series, it is configured for the direct treatment of chromic solutions. Ideal for galvanizing. Made in Titanium and acid-resistant resins.
Low temperature vacuum evaporator with heat pump, powered with electrical energy.
Detachable boiling vessel, submersed heat exchanger, large manway and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen. Automatic cleaning.

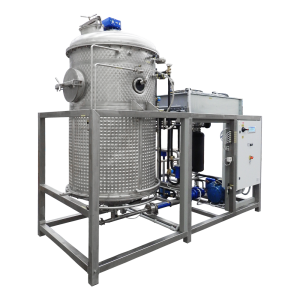

ECO VR HP Series

시간당 20 - 165L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작하며 재생탱크안에 스크레이퍼를  내장하고 있습니다.

Specially configured to treat encrusting water-based solutions, it has an internal scraper to remove fouling and to concentrate up to crystallization fouling wastewater, saline water and high density waters. To be installed wherever a strong concentration is required.
Suitable for ZLD installation, eluates from resin regeneration, RO rejects, food & beverage (electropolished version available on demand), chemical & pharmaceutical, cosmetic and plant extracts, glass industry (industrial and art glass), paint and printing industry, packaging. Detachable boiling vessel, external heat exchanger covering the boiling shell, internal scraper controlled by gear motor, large manway and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

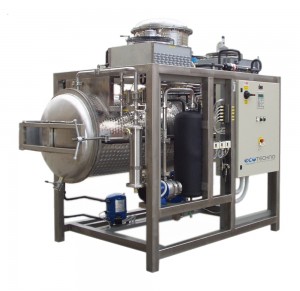

ECO DRY HP Series

시간당 10 - 42L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작하며 점도가 높은 폐용액을 위해 주로 사용됩니다.

Specially configured to obtain sludge, semi solid concentration and to concentrate fouling wastewater, saline water and high density waters. To be installed wherever an extremely strong concentration is required. Ideal to recycle valuable raw materials (metals and salts).
Suitable for ZLD installation, food & beverage (electropolished version available on demand), chemical & pharmaceutical, cosmetic, plant extracts and flavourings, galvanizing, gold industry, mechanic industry, heat treatment (quenching and tempering), TREATMENT OF CONCENTRATE FROM EVAPORATORS/CONCENTRATOR.
Detachable boiling vessel with large front and rear hatches with manhandles, external jacketed heat exchanger, large manways and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

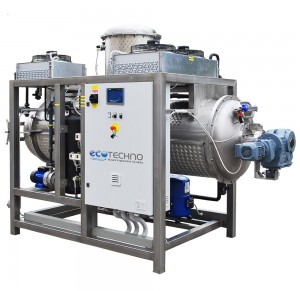

ECO DRY HP-C Series with endless scraper-screw

시간당 10 - 42L의 폐용액을 처리할 수 있습니다.
전기로 동작하는 가열펌프기능을 내장한 저온 진공  응축기로 동작하며 폐기물을 고농축할 수 있습니다.

Specially configured to obtain semi solid concentration and to concentrate fouling wastewater, saline water and high density waters. To be installed wherever an extremely strong concentration is required.
Suitable for ZLD installation, food & beverage (electropolished version available on demand), chemical & pharmaceutical, cosmetic, plant extracts and flavourings, galvanizing, gold industry, mechanic industry, heat treatment (quenching and tempering).
TREATMENT OF CONCENTRATE FROM EVAPORATORS/CONCENTRATOR.
Detachable boiling vessel with large front hatch with manhandle, external jacketed heat exchanger, strong endless scraping screw with moto-reducer to strongly move the concentrated product, large manway and sight glass with illuminator, built-in condensation section, full automatic operation with PLC and touch screen, remote control push-bar for the automatic discharge of the concentrate.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

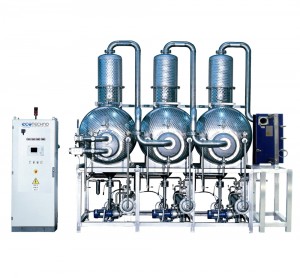

ECO DPM Series

시간당 165 - 1250L의 폐용액을 처리할 수 있습니다.
Single or modular multiple effect vacuum evaporator, for the effective concentration of water-based solutions. To be applied whenever alternative source energy are available. It can be powered with hot water, steam, diathermic oil. Ideal to recycle any waste heat and to be combined with alternative source boilers.
Suitable for all industries where an extremely limited maintenance is required. Ideal in the die-casting and mechanic industry, heat treatment, eluates from resin regeneration, RO rejects, chemical & pharmaceutical, galvanizing, pickling and surface treatments, leachate.
Detachable boiling vessels with maintenance-friendly tube bundle submersed heat exchangers, large manways and sight glasses with illuminators, condensation with plate exchangers or coolers, full automatic operation with PLC and touch screen.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids. It can be designed to treat one or different water-based solutions at the same cycle.

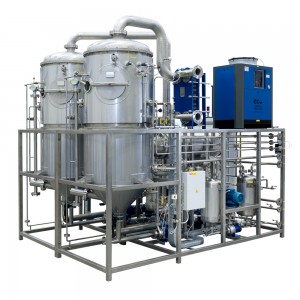

ECO DPM SE Series

시간당 420 - 7 Ton의 폐용액을 처리할 수 있습니다.
Single or multiple effect vacuum evaporator, for the effective concentration of water-based solutions. To be applied whenever alternative source energy are available.
It can be powered with hot water, steam, diathermic oil. Ideal to recycle any waste heat and to be combined with alternative source boilers.
Suitable for the treatment of large flow rates of wastewater, where limited maintenance is required. Versatile and technological, it is advisable to saline waters, leachate. Ideal in chemical & pharmaceutical, energy industry, industrial and municipal waste disposal sites.
Vertical boiling vessels free inside with thermal insulation, external maintenance-friendly tube bundle heat exchangers, manways and sight glasses with illuminators, condensation with plate exchangers, full automatic operation with PLC and touch screen.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids. It can be designed to treat one or different water-based solutions at the same cycle.

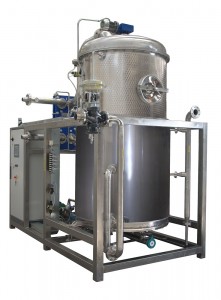

ECO VR WW Series

시간당 30 - 250L의 폐용액을 처리할 수 있습니다.
Vacuum evaporators with internal scraper, designed to work as single of multiple effect in series. To be applied whenever alternative source energy are available. It can be powered with hot water, steam, diathermic oil. Ideal to recycle any waste heat and to be combined with alternative source boilers.
Specially configured to treat encrusting water-based solutions, it is equipped with an internal strong scraper to remove fouling and to concentrate up to crystallization fouling wastewater, saline water and high density waters. To be installed wherever a strong concentration is required.
Suitable for ZLD installation, power plants, eluates from resin regeneration, RO rejects, food & beverage (electropolished version available on demand), chemical & pharmaceutical, cosmetic and plant extracts, glass industry (industrial and art glass), mechanic and galvanizing, paint and printing industry, packaging.
Detachable boiling vessel, external heat exchanger covering the boiling shell, internal scraper controlled by gear motor, large manway and sight glass with illuminator, multiple option condensation (heat pump, plate exchangers, air or water coolers), full automatic operation with PLC and touch screen.
Standard manufacturing in 1.4401/1.4404 (AISI316/316L) or special alloys for hazardous liquids.

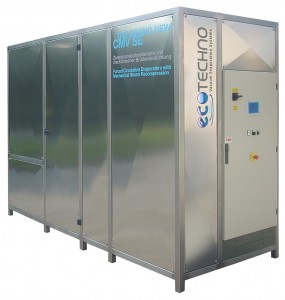

ECO CMV SE Series

주문형 제품으로 고객의 용량에 맞춰 대용량의 폐용액 / 폐기물의 24시간 자동처리가 가능합니다.
The Vapour Mechanical Compression evaporators are based on the forced circulation of the vapour through a mechanic compressor, to increase the thermal energy of vapour and heat the water-based solution.
Suitable to treat oil emulsions, spent release agents from die-casting, water from vibratory finishing, pre-treatment for painting industry and whenever the clean vapour can represent the source of energy.
Vertical boiling sump, large capacity for continuous operation, vapour compression system by Root pump, vacuum by vacuum pump, recirculating concentrate circuit with centrifugal pump, plate exchanger for exchanging heat between the fluid to be treated and the vapour produced, causing the condensation of the latter (distillate), pre-heating system, full automatic operation with PLC and touch screen, Automatic cleaning.
